Walk Through Metal Detector – 6 detecting zones UB500

What is Walk Through Metal Detector ?
Metal detectors provide the responder community with an essential tool to screen individuals that may be carrying weapons or contraband that contain metallic components. Available in walk-through and handheld models, metal detectors are commonly used at checkpoints in airports, schools, courthouses, prisons, and military installations. Walk-through metal detectors can be designed for either indoor or outdoor use.

Pinpointing the location of the target quickly is important so that your security personnel can respond swiftly. Larger crowds require greater through put. If you are scanning a large volume of individuals, a multi zone metal detector will let you process more individuals quicker.

How Walk Through Metal Detector Work ?
The metal detector utilizes the laws described by a Scottish physicist named James Clerk Maxwell. He discovered that magnetism and electricity are related. An example of the relationship is a coil of copper wire wrapped around a metal nail. When current is applied to the coil, the metal nail becomes magnetized.

When an electric pulse is sent through a coil of wire, it creates a magnetic field. When the field hits a metal object, it
reflects back and can be detected using another coil of wire. The size and timing of the detected pulse is used to define the size and position of the object.

Where are Walk Through Metal Detector Applied ?
The Metal Detector Conveyor Machine is widely applied in various industries: food industry, toy, pharmaceutical, beverage,
textile, garment, plastics, chemicals, lumber, mining, packaging industries and other industries. We offer customized metal
detectors for your special need, rigorous quality standards ensure that we meet your specification each time, every time !

What are the Features ?

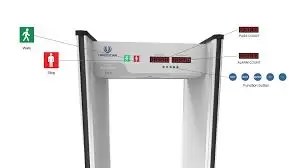

1. Display: High brightness digital display the number of through people and alarm number and alarm location.
2. Multiple Detection Zones: Suspicious objects can be accurately displayed in every area.
3. Sensitivity: Each zone has 100 degree sensitivity, adjustable as needed.
4. Pinpoint: There’re two rows of lights on both sides, which can intuitively display alarm location and simultaneously alarm with sound and light.
5. Counting: Can detect and count the numbers of people passing and alarm numbers.
6. Shockproof Design: Exclusive shockproof design, stand in the middle of the door, pat the door panels on both sides, the door will not be false alarm.
7. High Precision: The highest sensitivity can detect a pin (or 1/2) paper clip in the middle of the door. It can be detected
without missing or misreport, and detect more than 150 grams of copper, aluminum, zinc and other metals or control tools and guns.
8. Anti-Interference: In view of the electromagnetic interference in various environments, the whole system adopts the advanced electromagnetic compatibility design, and uses the DSP processor to carry out relevant operations and filtering on the sampling signal of prohibited items, so that the whole equipment has a strong ability of electromagnetic anti-interference.
9. Material: High density board, plus fire prevention board, fire prevention, moistureproof, aluminum alloy square tube pillar
inside, no deformation.
10. Harmless: harmless to cardiac pacemaker wearers, pregnant women, magnetic media, etc.
11. Additional Functions: Remote control can be optional purchase to control parameters, reserved switch signal, can be connected with computer, camera, three rollers, etc.

Speficiations:
Model
NG-8611
NG-8612
NG-8613
Display
Digital
4.3 inches Screen
7 inches Screen
Channel Size
2000*700*550mm (H*W*D)
Overall Size
2202*820*550mm (H*W*D)
Alarm Mode
Sound and Led Lights
Detection Area
6 Zones
Sensitivity
100 levels adjustable
300 levels adjustable
1000 levels adjustable
Work Condition
-20°C +55°C
Power Supply
AC 200V ~ 240V
Power Consumption
30W
Work Frenquency
6.99~11KHZ Adjustable
Net Weight
Approx 70Kg
Carried Standard
GB15210-2003
Remark
1. The electrical appliances are conform to EN60950 safety standards.
2. Radiation are conform to EN50081-1. l
3. The anti-interferenceare conform to EN50082-1 standard. l
4. Strictly implement the current national standards for walk-through metal detectors.
